I found this at Active Surplus today for $1.50. It has eleven LA-301VL (7-segment common cathode displays) on a 2-layer pcb.
Numbering the pins and digits from left to right, here's how the pins correspond to digits:
Digit | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
Pin | 1 | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 |

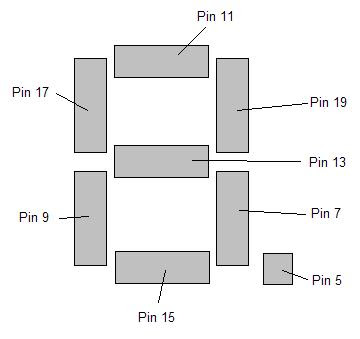

With respect to the segments, here's the relationship between the segments and the pins on the PCB:
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjFnfocEwtivbRYxdVfhE-xYhoz1j5hJBUL6hA4iHhyZaPkRjltkjUI5CXM9L7MPBrmvARxzeOsDbyTUJFoNiYaqu7gZl5xvmFK1h5_qL2Pm5Vwv5ZkwRLYjQYmj_YreiRmjVw1Dz3dNyUJ/s400/digit.JPG)
I'll need to build a multiplexer to control the display. This should be interesting.
